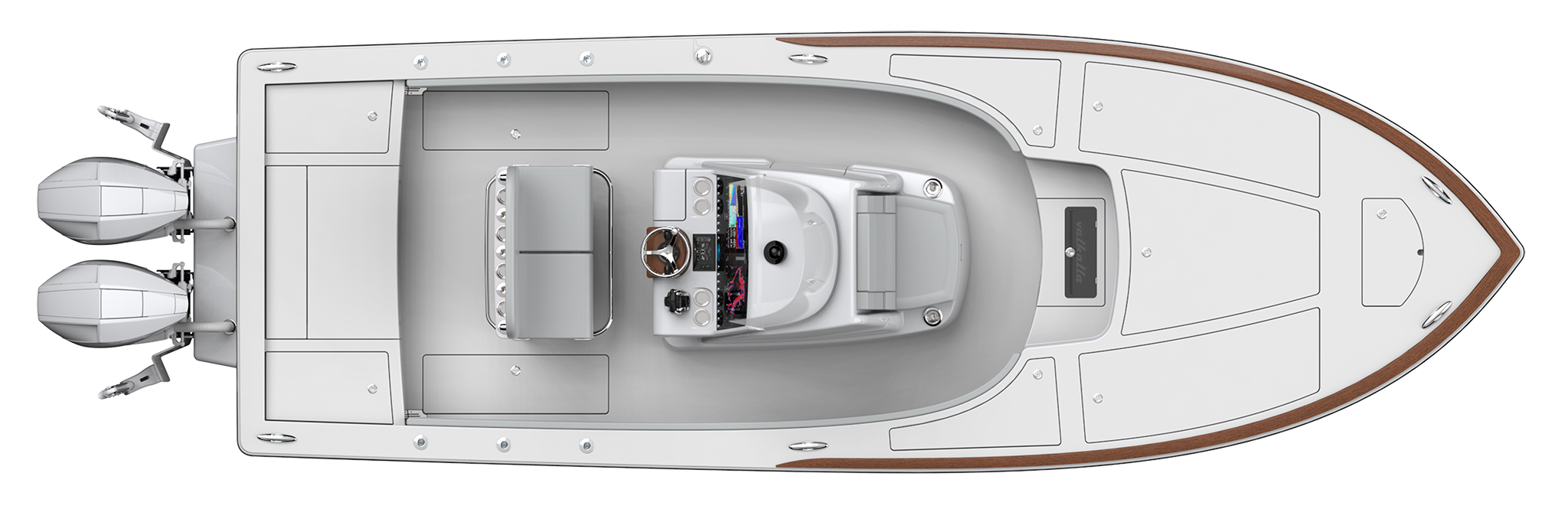

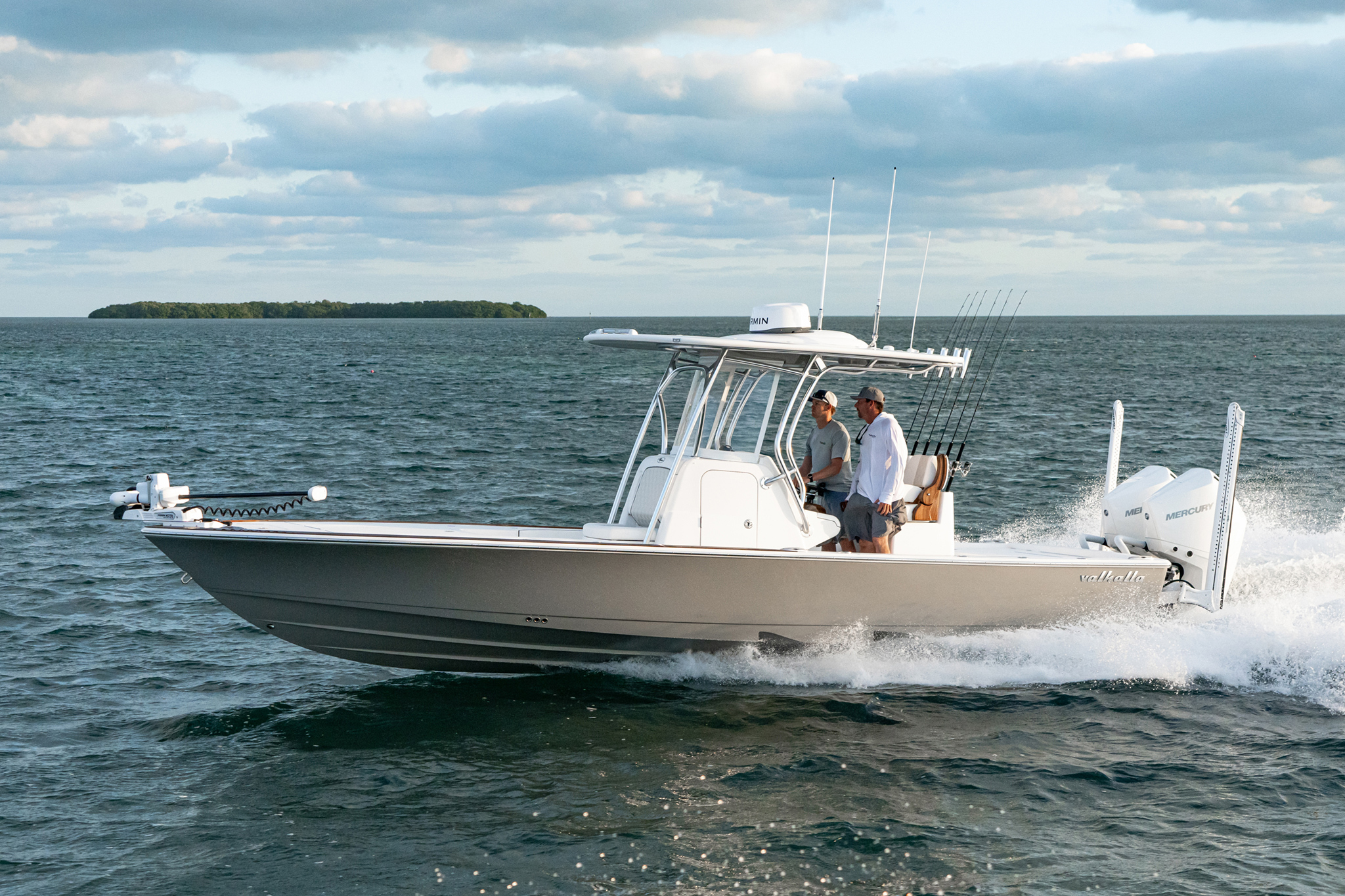

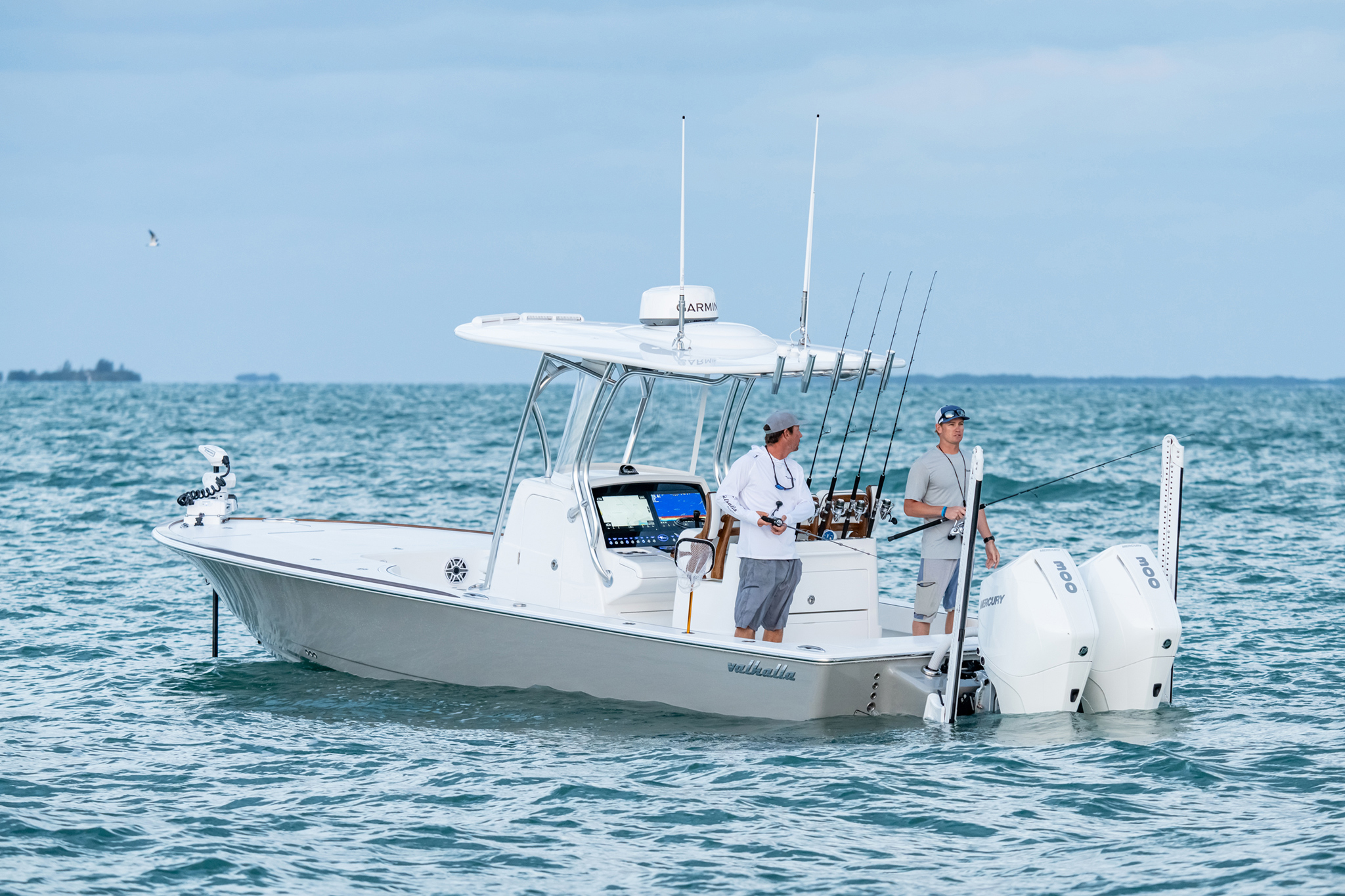

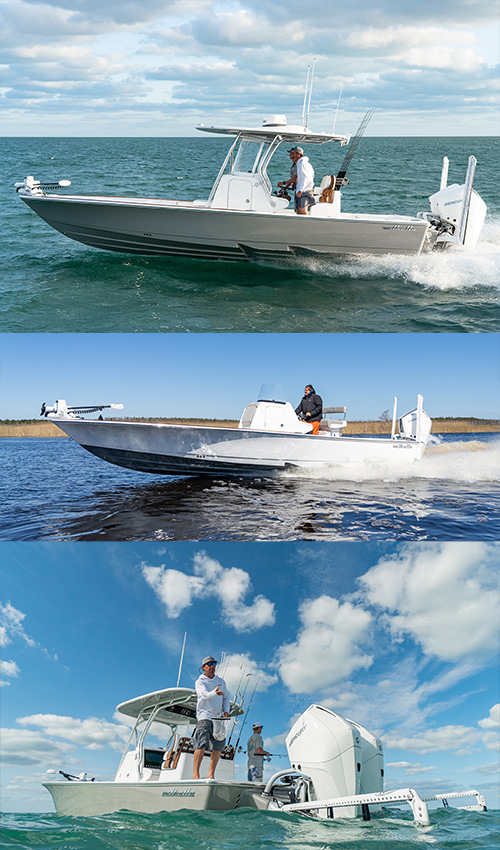

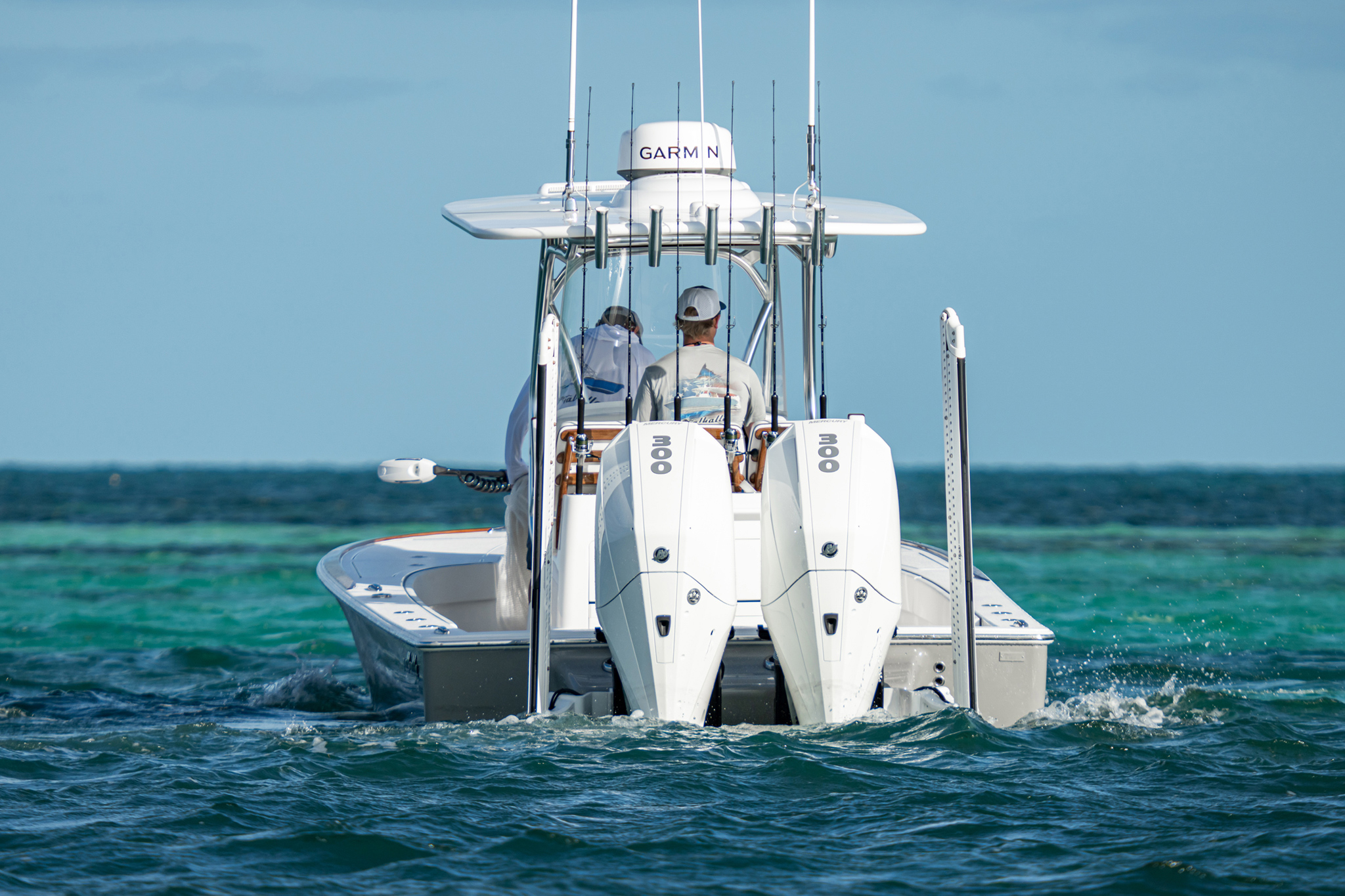

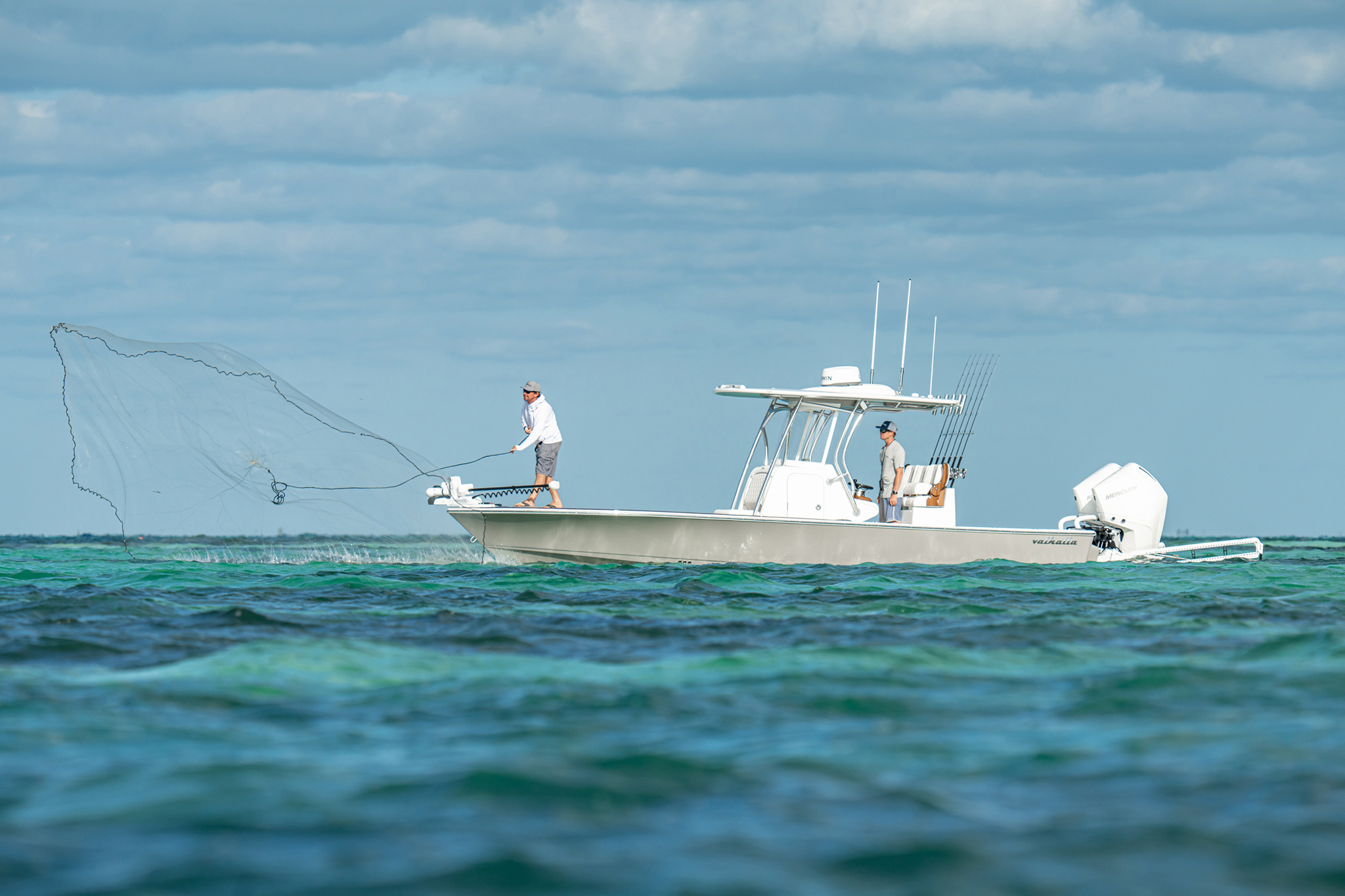

Twin Engines and Hardtop

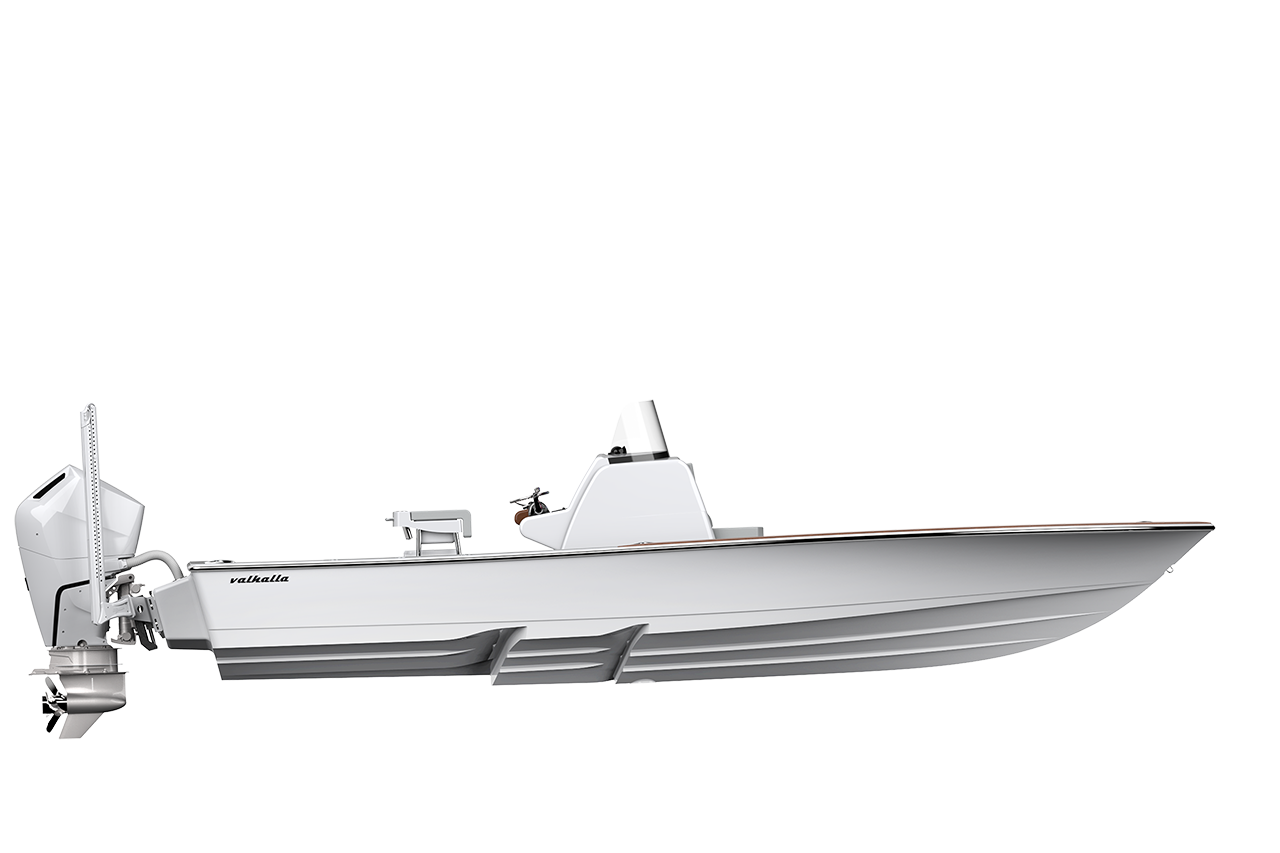

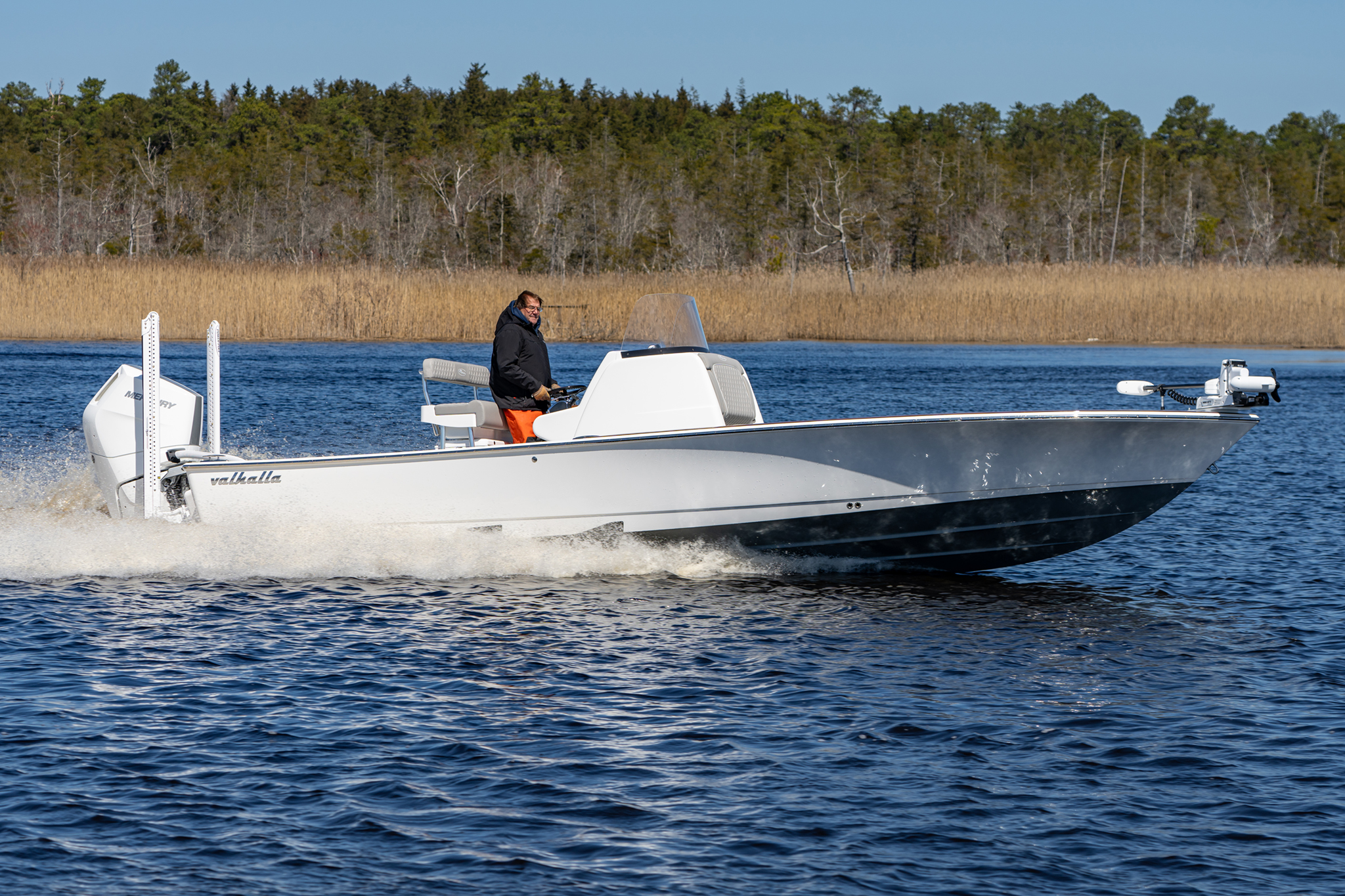

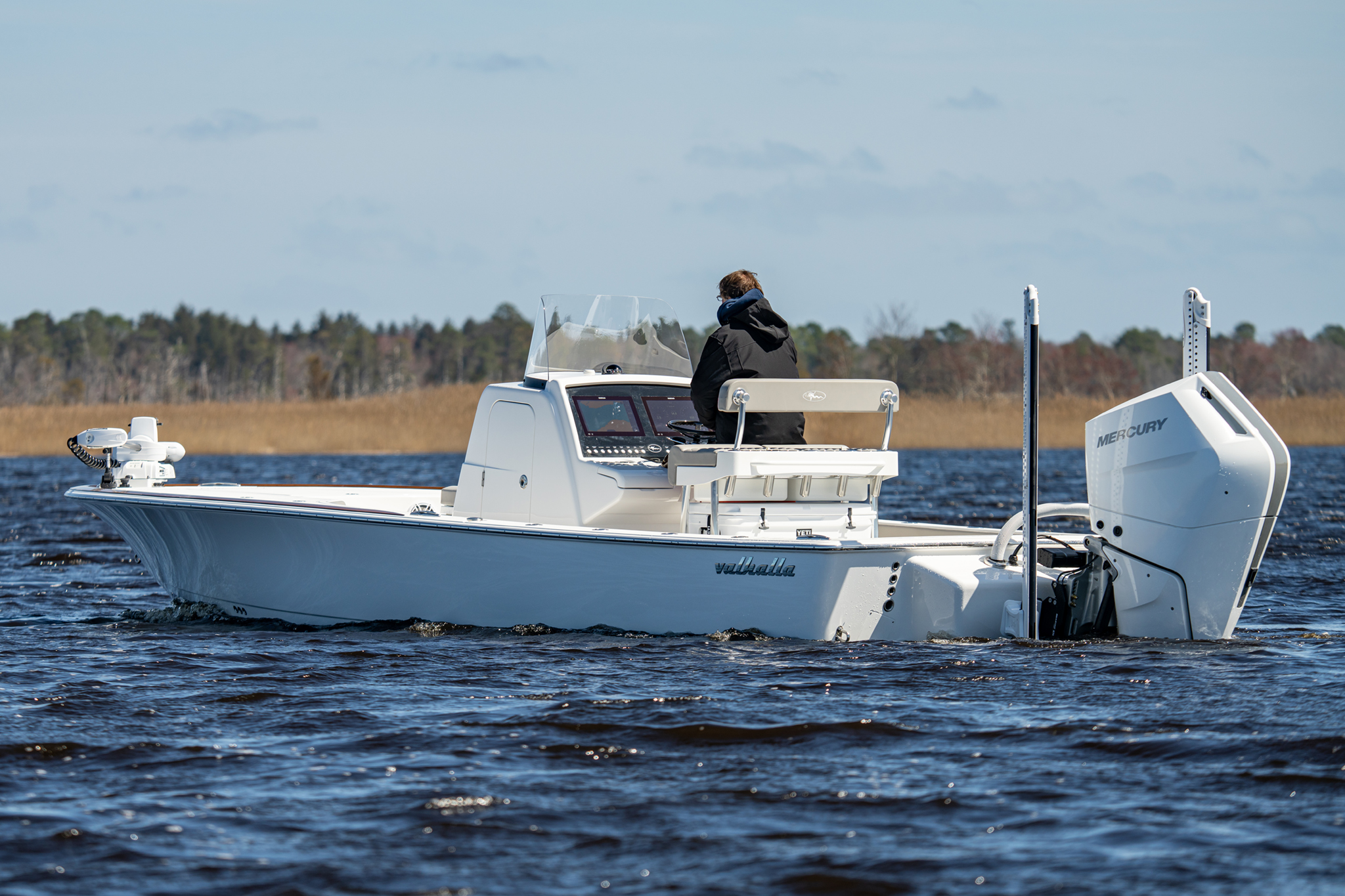

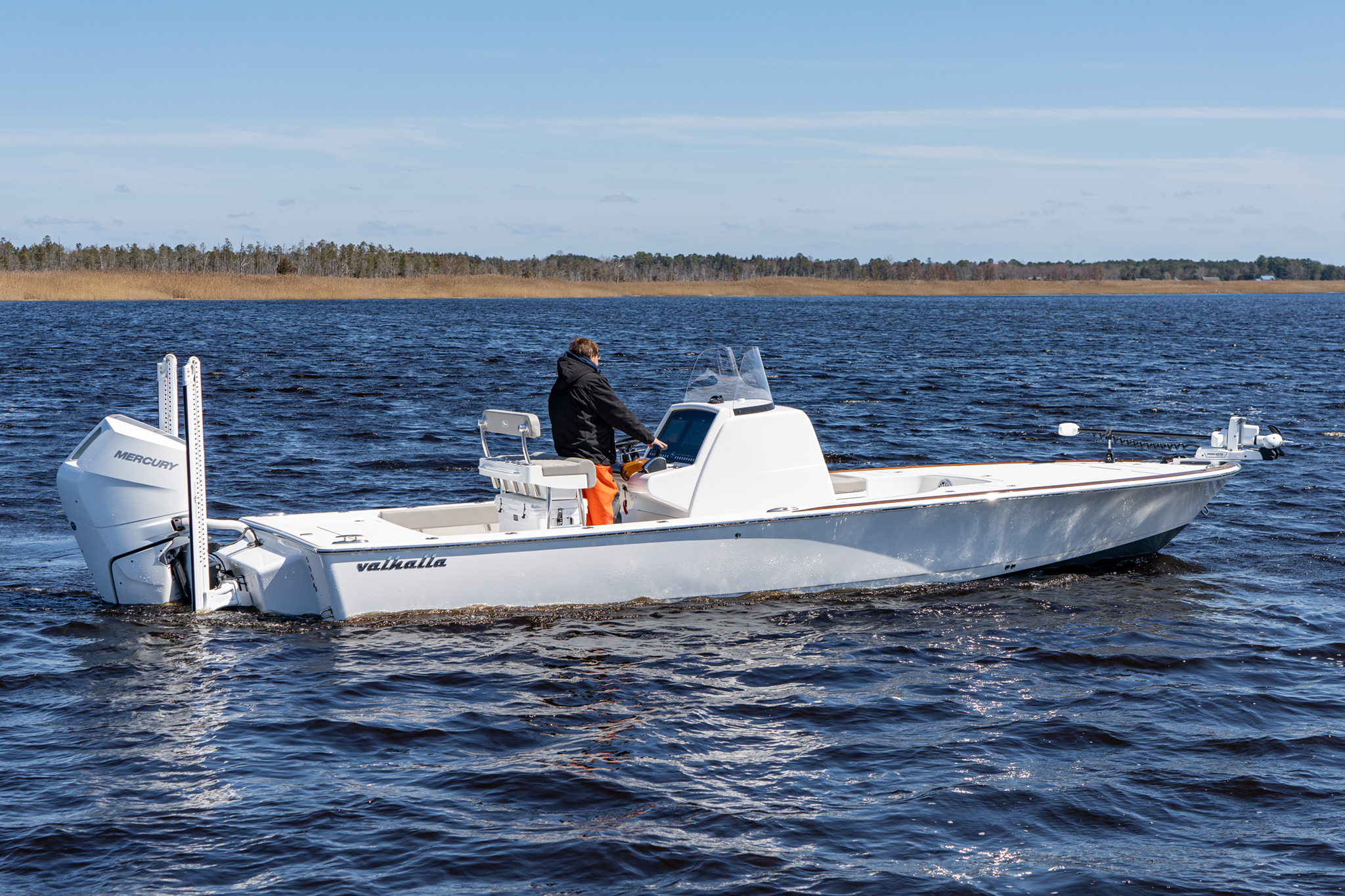

Single Engine without Hardtop
Hardtop with Second Station
▼
▲
-
Length, hull
-
- 28’ 1” (8.56 meters)
Beam, overall with rub rail (B.O.A.)
-
- 9’ 3” (2.82 meters)
Freeboard
-
- at bow (top of toe rail)
- 30.5” (.77 meters)
- at stern (top of cap)
- 22.5” (.57 meters)
Draft
-
- engines up, full load
- 18” (.46 meters)
- engines down, jack plate up
- 22” (.56 meters)
-
Weight (single V10 400)
-
- dry weight
- 6,930 pounds
- (3,143 kilograms)
- half load
- 7,160 pounds
- (3,248 kilograms)
- full load
- 7,942 pounds
- (3,602 kilograms)
Deadrise (at transom)
-
- 18.0º
-
Fuel capacity*
-
- 130 gallons (492 liters)
Freshwater capacity
-
- 28 gallons (106 liters)
Max engine HP
-
- 600 hp

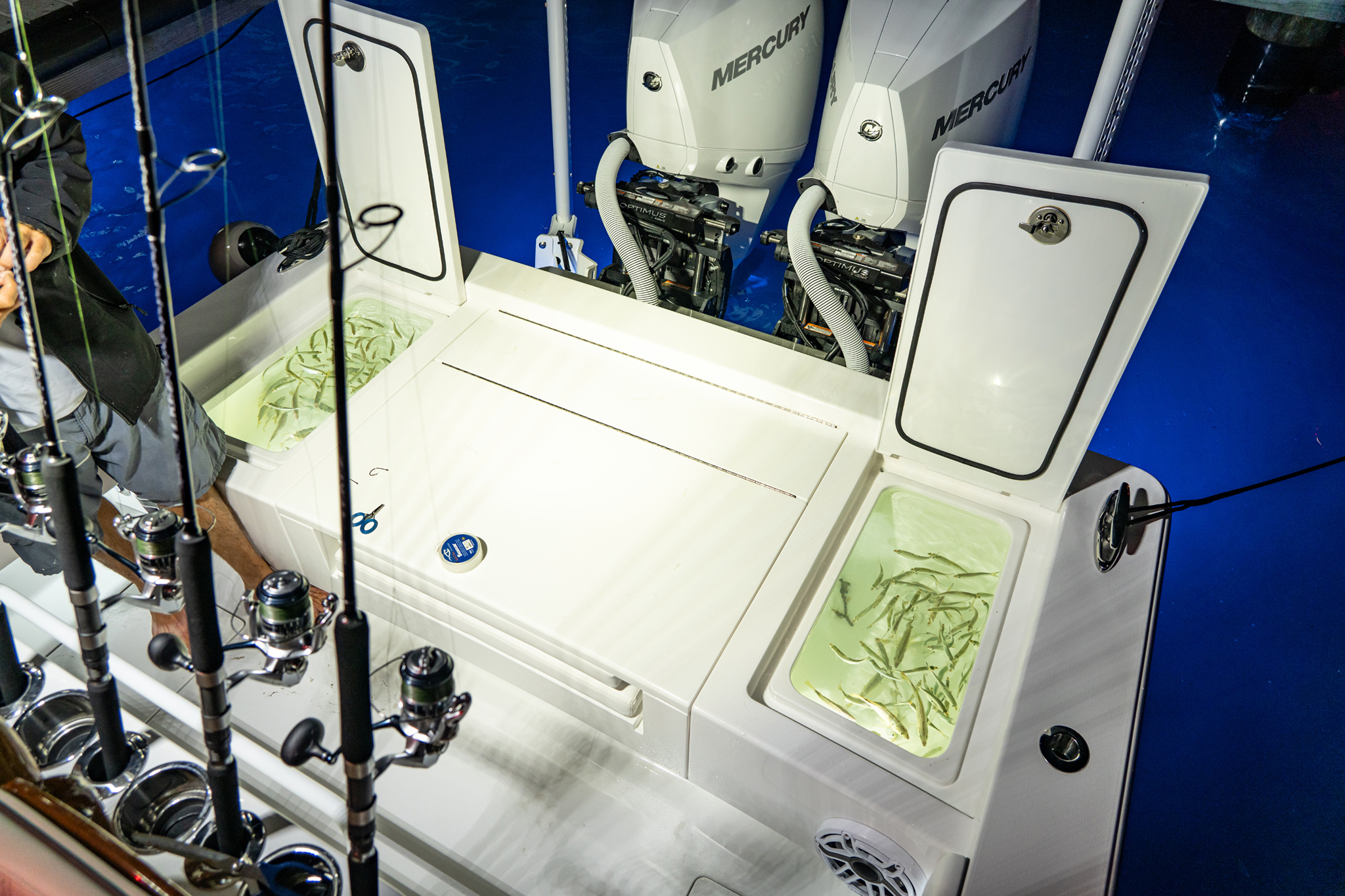

Live wells
-
- Transom (2) x 25 gallons
- (95 liters) each

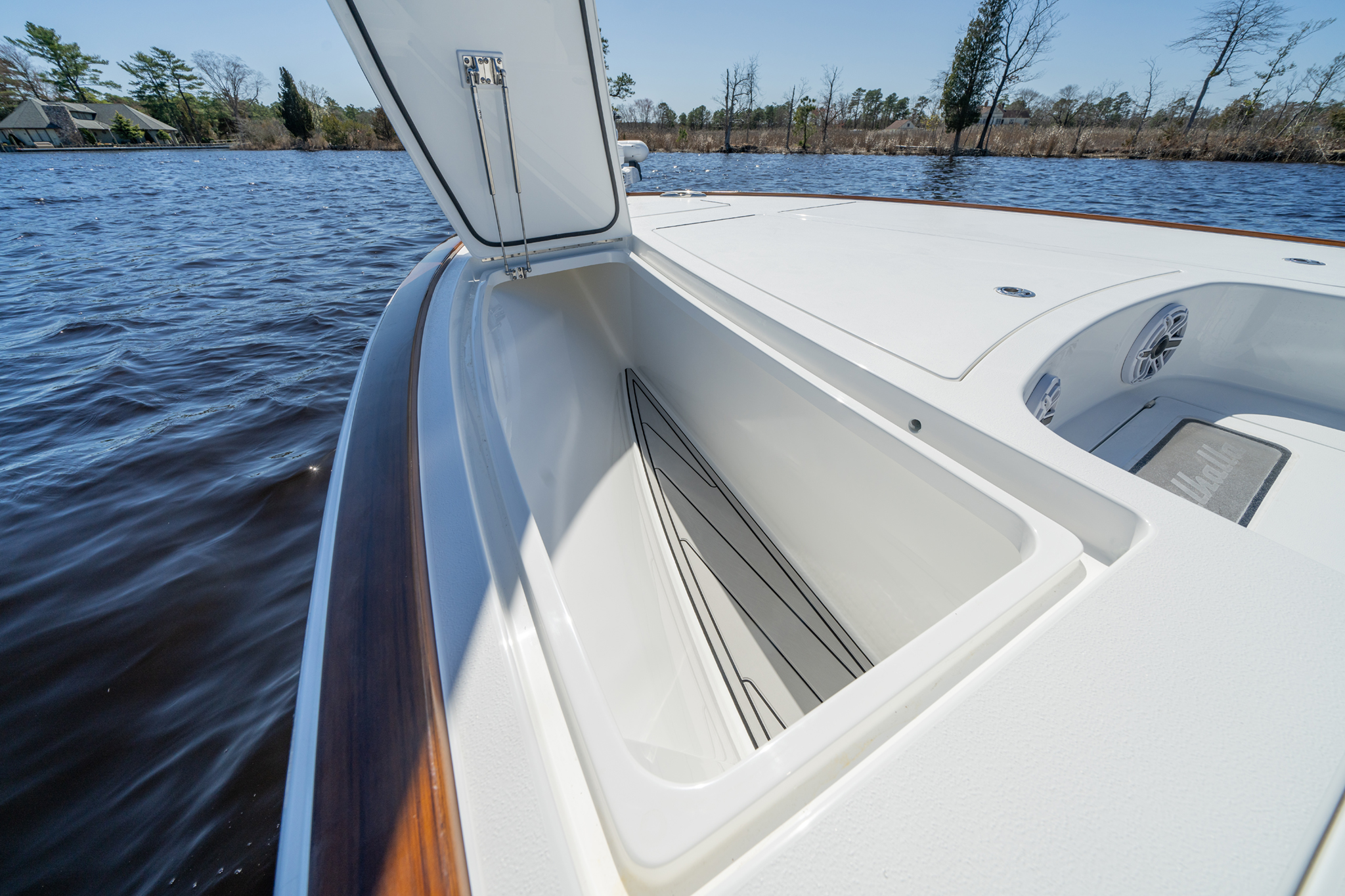

- Forward (1) x 28 gallons
- (106 liters)
*EPA-required fuel system components, temperature, boat loading and other factors will affect the usable fuel capacity by an estimated 10 percent.
The right is reserved to make changes, without notice, at any time, in equipment, materials, prices and specifications. Accommodation drawings and photos may show optional equipment. Performance may vary depending upon conditions.
