Length, hull
-
- 40’ 6” (12.34 meters)
Length, with engines down
-
- 43’ 3” (13.18 meters)
Beam, overall (B.O.A.)
-
- 11’ 7” (3.53 meters)
Height
-
- waterline to hardtop, half load
- 8’ 8” (2.64 meters)
- waterline to open array radar, half load
- 10’ 0” (3.05 meters)
-
Draft
-
- engines up, full load
- 29” (.74 meters)
- engines down, jack plate up
- 33” (.84 meters)
Weight
-
- half load
- 18,343 pounds
- (8,320 kilograms)
- full load
- 20,798 pounds
- (9,434 kilograms)

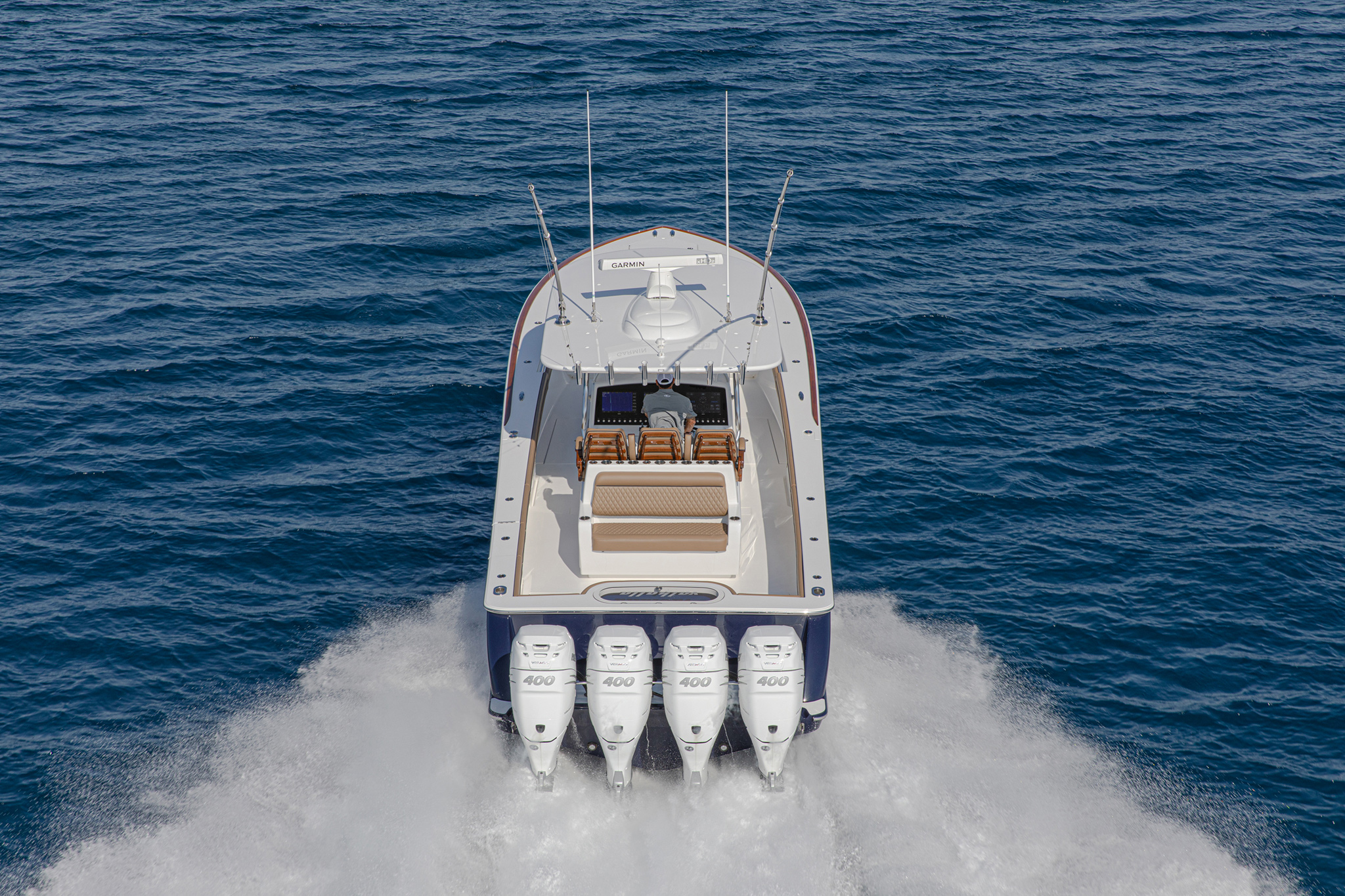

- (1) Weight with Quad 450 hp engines
- (2) Half Load, 50% liquids
- Full Load, 100% liquids
- no passengers or gear, hardtop, no tower
-
Deadrise (at transom)
-
- 24.0º
Fuel capacity
-
- 557 gallons (2,108 liters)
Water capacity
-
- 49 gallons (185 liters)
Holding tank capacity
-
- 12 gallons (45 liters)
Max engine HP
-
- 1800 hp
Live well (transom)
-
- 90 gallons (341 liters)

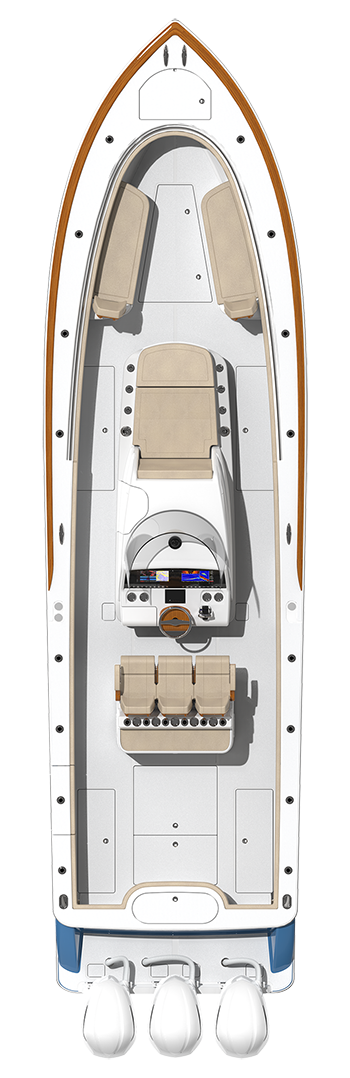

The right is reserved to make changes, without notice, at any time, in equipment, materials, prices and specifications. Accommodation drawings and photos may show optional equipment. Performance may vary depending upon conditions.

\
